Lakeside Recreation Shore Ramp
  • PWC-50 Shore Ramp

    $1,079.00 $999.00
    Please indicate what model of PWC the ramp will be used for.

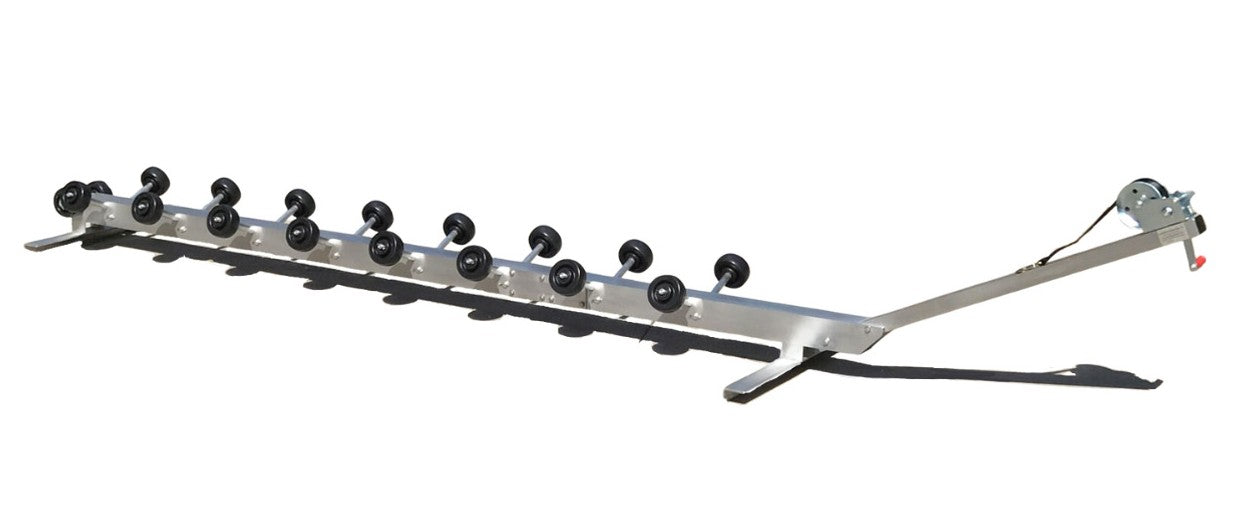

    The Shore Ramp PWC-50 provides convenient and easy storage of your personal watercraft on shore.  Works with Sea Doo, Waverunner, and Jet Ski PWCs.  Large, low-friction rollers make it easy to winch your watercraft up and completely out of the water.  When your watercraft is stored on land, you can put the cover on and off and access it for fueling, cleaning, or other maintenance without getting wet.  When it is time to go boating again, your watercraft can be launched in seconds, getting you on the water without delay.

    14'-8" long - handles larger 3-person watercraft with room to spare.  The sturdy frame is constructed entirely of high-strength aluminum and is rated for up to 1200lbs.  All the fasteners are stainless steel, so the Shore Ramp PWC-50 will last for many years without corrosion.

    NEW - Select the optional Electric Winch Kit upgrade for even more convenience.

    Weighing only 85 lbs, the Shore Ramp PWC-50 is easy to position on your shore.  For those in more northerly locations where lake equipment must be removed for the winter, the PWC-50 can be conveniently pulled out by one person.

    Compared to a traditional boat lift, the PWC-50 is quicker and easier to use and does not require adding to your dock.


    The Shore Ramp PWC-50 ships as a kit with all parts and fasteners that can be assembled in about 60 minutes.

    Assembled Dimensions & Weight: 36” wide, 176” long, 28” high, 85 lbs.

    Maximum Watercraft Weight: 1200 lbs

    Maximum Recommended Watercraft Length: 144”

    Maximum Recommended Watercraft Width: 54”

    Roller Inside Edge Width: 12.0“

    Keel Clearance: 4.0”

    Roller Outer Edge Width: 16”

    Rollers: 18 Polyolefin, 5” diameter, 2” wide.

    Frame: 6061-T6 and 6063-T52 Aluminum.  Stainless 18-8 fasteners.

    Winch: Galvanized steel.  800-1200 lbs pull rating.

    Shipping Dimensions & Weight: 10” wide, 7” high, 94” long,   105 lbs.

    Tools Required for Assembly: 9/16” box wrench, 9/16” socket wrench, medium pliers.

    Ships in 2-4 days via UPS.

    Assembly & Use Instructions

    Video of Assembling the Cotter Pins

    Kit packaged in U.S.A.
    Main parts fabricated in U.S.A.
    (wheels, winch imported).


    (Redesigned for 2018.  Some of the photos show the previous version to illustrate the usage)
