Lakeside Recreation Shore Ramp
  • PWC-SU for Stand-Ups (Narrow)

    $979.00
    There are only 2 items left in stock.
    There are only 2 items left in stock.
    There are only 2 items left in stock.
    There are only 2 items left in stock.
    This item is out of stock

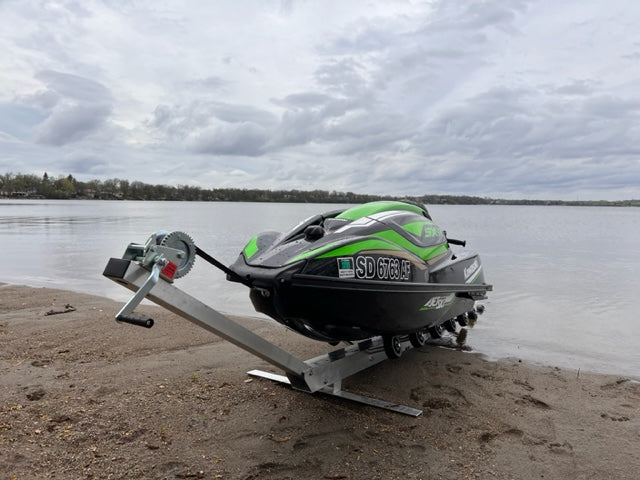

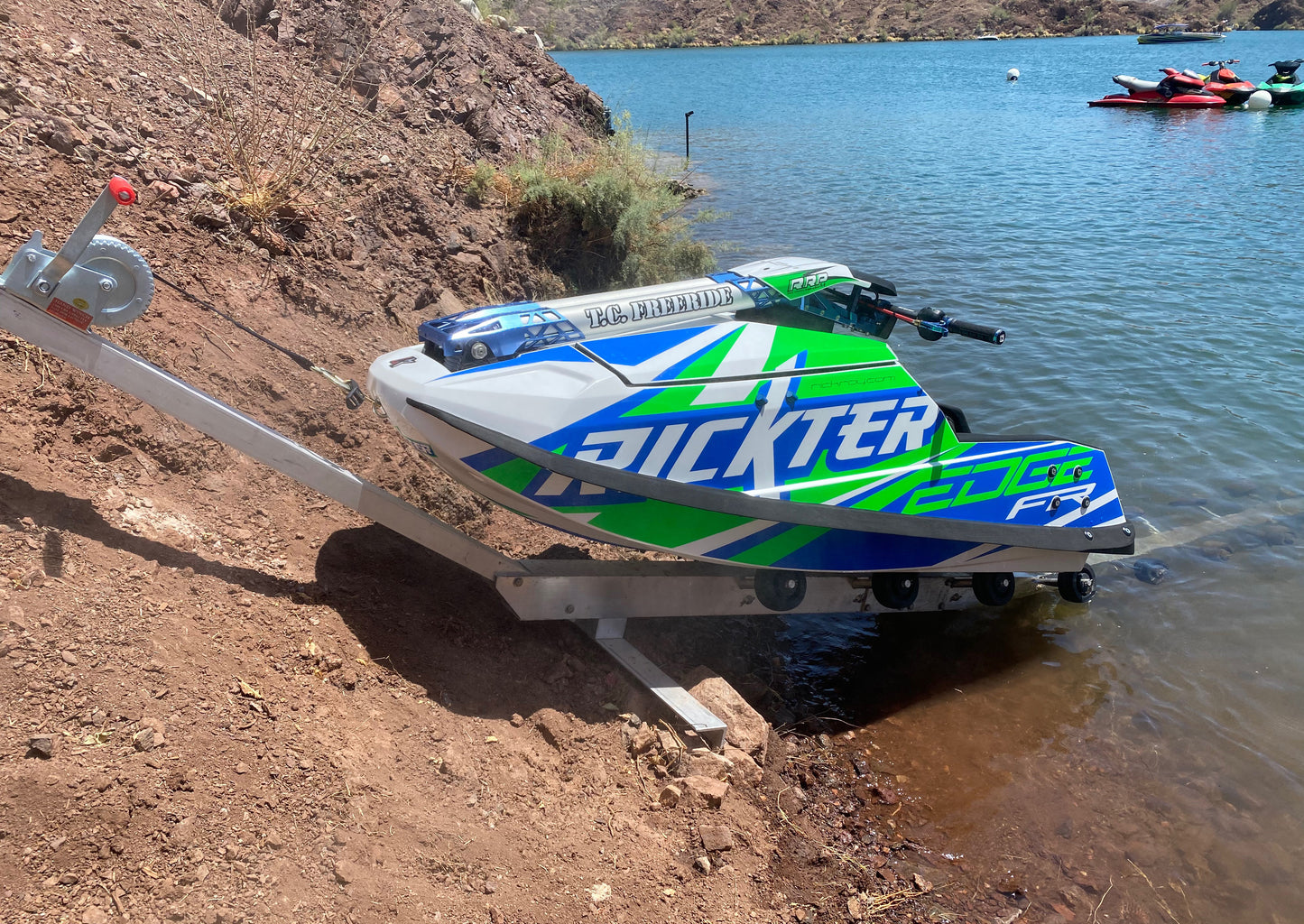

    The Shore Ramp PWC-SU provides the same convenient storage on shore for your Stand Up Watercraft.  Works with the new Kawasaki Jet Ski SX-R and legacy Jet Skis 750SX, 650SX, etc as well as Yamaha SuperJet and similar Stand Up hulls from Rickter and others, The PWC-SU has the same construciton as the full-sized PWC-50, but the rollers are set narrower (13.5" outside width instead of 16") to match the hulls of smaller Stand Up Jet Skis.

    When your watercraft is stored on land, you can put the cover on and off and access it for fueling, cleaning, or other maintenance without getting wet.  When it is time to go boating again, your watercraft can be launched in seconds, getting you on the water without delay.

    The sturdy frame is constructed entirely of high-strength aluminum. All the fasteners are stainless steel, so the Shore Ramp PWC-SU will last for many years without corrosion.

    Weighing only 85 lbs, the Shore Ramp PWC-SU is easy to position on your shore.  For those in more northerly locations where lake equipment must be removed for the winter, the PWC-SU can be conveniently pulled out by one person.

    SCROLL DOWN FOR LENGTH AND SPECS!

    The Shore Ramp PWC-SU ships as a kit with all parts and fasteners that can be assembled in about 60 minutes.

    Assembled Dimensions & Weight: 36” wide, 176” long, 28” high, 85 lbs.

    Maximum Watercraft Weight: 1100 lbs

    Maximum Recommended Watercraft Length: 144”

    Maximum Recommended Watercraft Width: 54”

    Roller Inside Edge Width: .9.5“

    Keel Clearance: 4.0”

    Roller Outer Edge Width: 13.5”

    Rollers: 18 Polyolefin, 5” diameter, 2” wide.

    Frame: 6061-T6 and 6063-T52 Aluminum.  Stainless 18-8 fasteners.

    Winch: Galvanized steel.  800-1200 lbs pull rating.

    Shipping Dimensions & Weight: 10” wide, 7” high, 94” long,   105 lbs.

    Tools Required for Assembly: 9/16” box wrench, 9/16” socket wrench, medium pliers.

    Ships in 2-4 days via UPS.

    Assembly & Use Instructions

    Video of Assembling the Cotter Pins


    Kit packaged in U.S.A.
    Main parts fabricated in U.S.A.
    (wheels, winch imported).
